Description

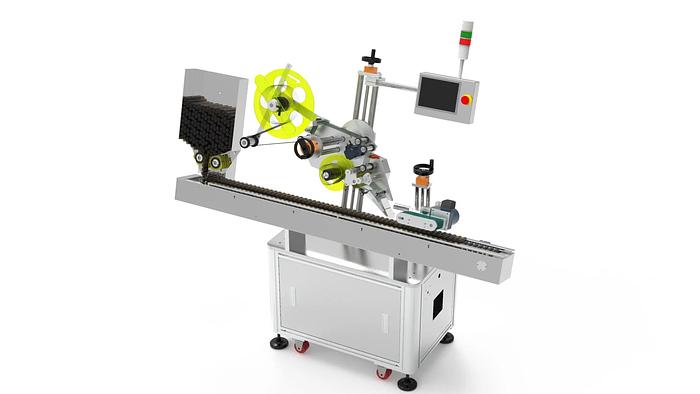

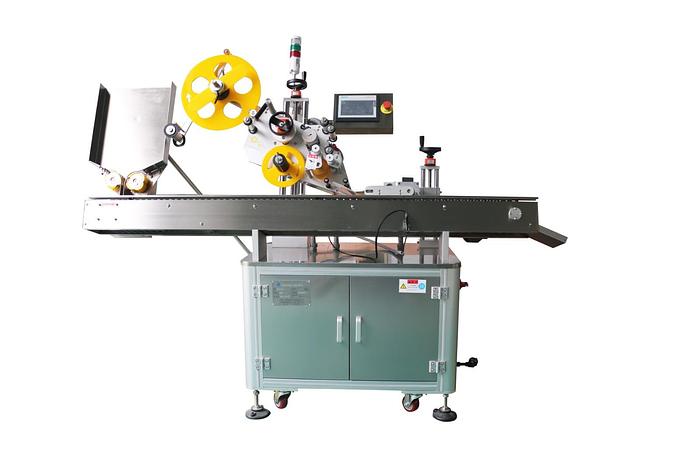

AUTOMATIC HORIZONTAL LABELING MACHINE WITH PRINTER


This machine is suitable for labeling the unstable cylindrical objects, such as oral liquid bottles, ampoules, reagent tube, pencil, solid glue bottles, pens, lipstick, etc.


We offer Installation and Training on-site (additional cost applies). Also, written warranty and replacements parts available

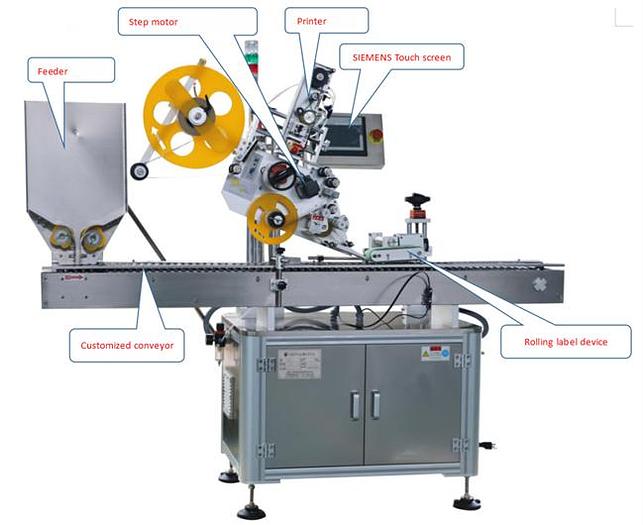

Performance Features:


  1. Uses horizontal roller conveying mechanism and tilt conveyor chain, bottles are guided automatically, stable applying label.
  2. Broken bottles rate is low, application of flexible sub-bottle labeling smoothly.
  3. Intelligent control, automatic photoelectric tracking, has function of no product no labeling, no label auto calibration and automatic label detention function to prevent leakage and waste of labels.
  4. Accurate labeling position, fast speed and high precision. It has functions of fault alarm, production count and parameter setting protection, convenient for production management.

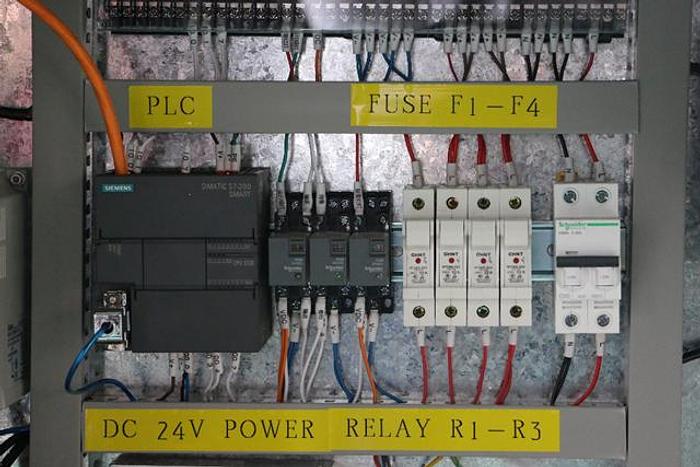

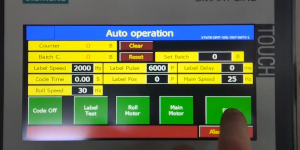

  5. Adopt step/servo motor, Siemens PLC Control system, Siemens color touch screen display.
  6. Printing machine.
  7. Machine shell made of 304 Stainless Steel and anodized aluminum alloy with high corrosion resistance.
  8. Alarm System.

Specifications

ModelDE-180
ConditionNew
Stock Number2443
Capacity:50-100 bottles/min (depends on tube and label size)
Label Accuracy:less thank or equal to +/- 1mm
Power Supply:1 Ph. 220 V, 50/60Hz
